700 x 32c
Full Frame & Top-tube bag mounts, rear rack + mudguard mounts and 3 sets of Bottle mounts
Electronic Di2 and AXS 1x and 2x, max. chainring 52/36 teeth, single chainring 50 teeth
Breed
Not planned
Route
Asphalt

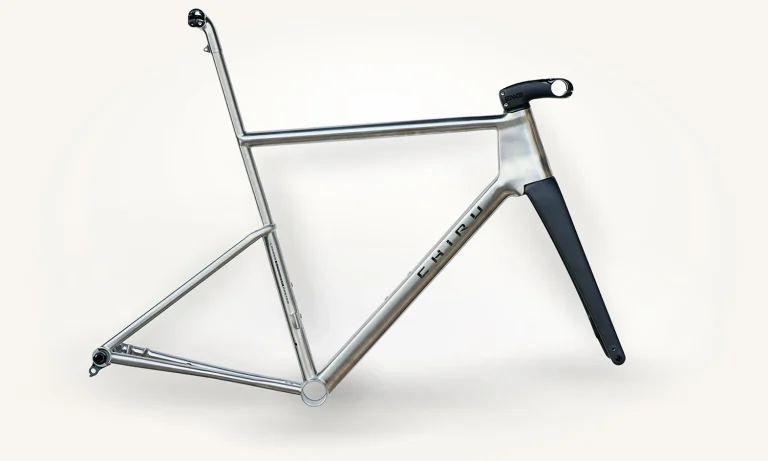

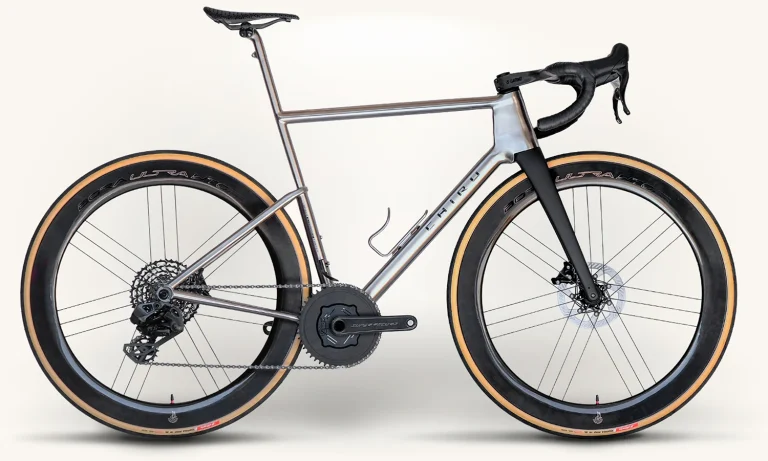

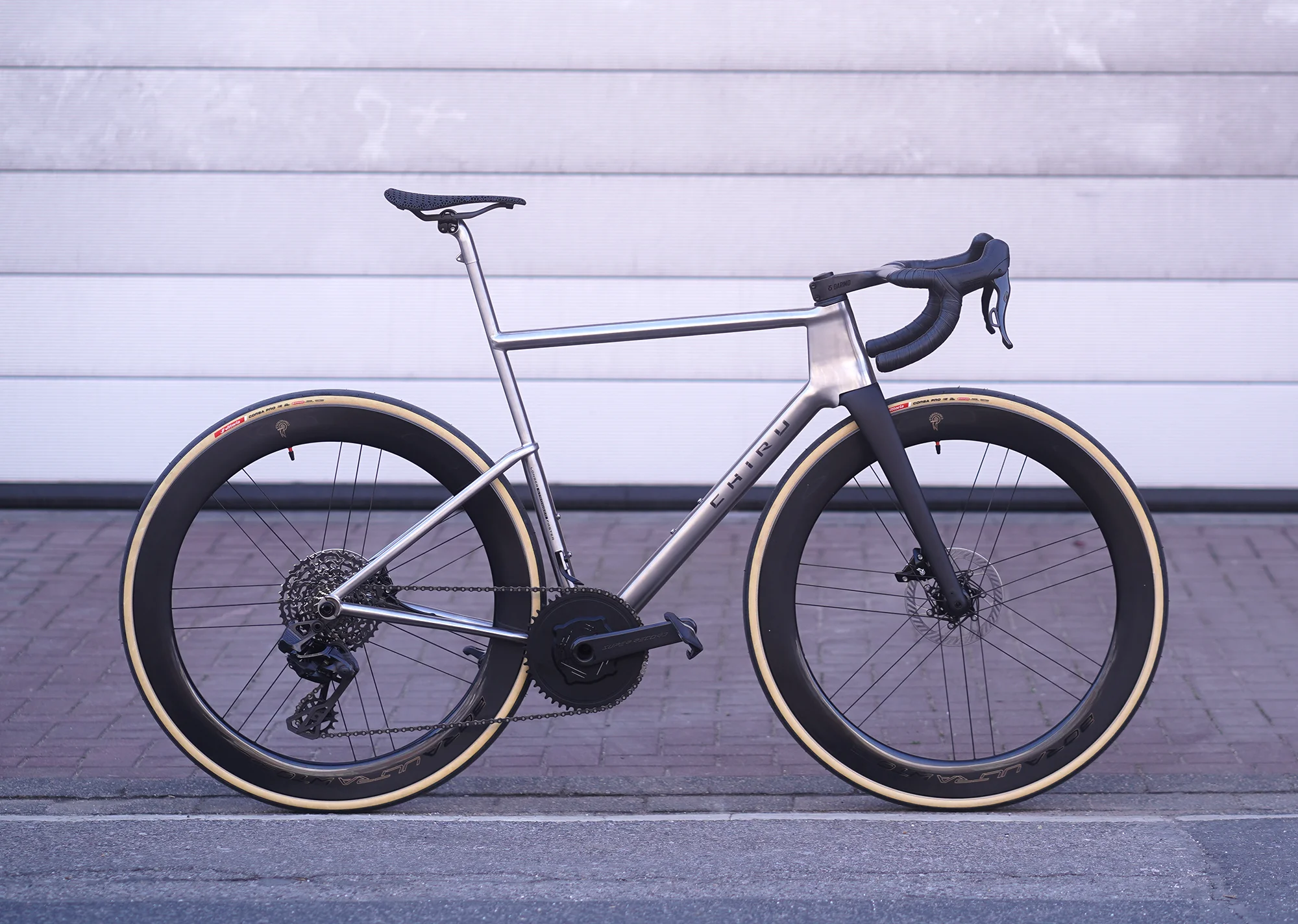

The AERIX, embodying aerodynamics and innovation, is designed for cyclists seeking extreme performance during intense rides or long distances. By integrating Chiru’s DNA into every detail, this 100% race frame combines 3D printing and titanium, reflecting our commitment to providing bikes that propel competitors to new heights, without being as demanding as most aero frames.
The best of 3D printing and traditional techniques!

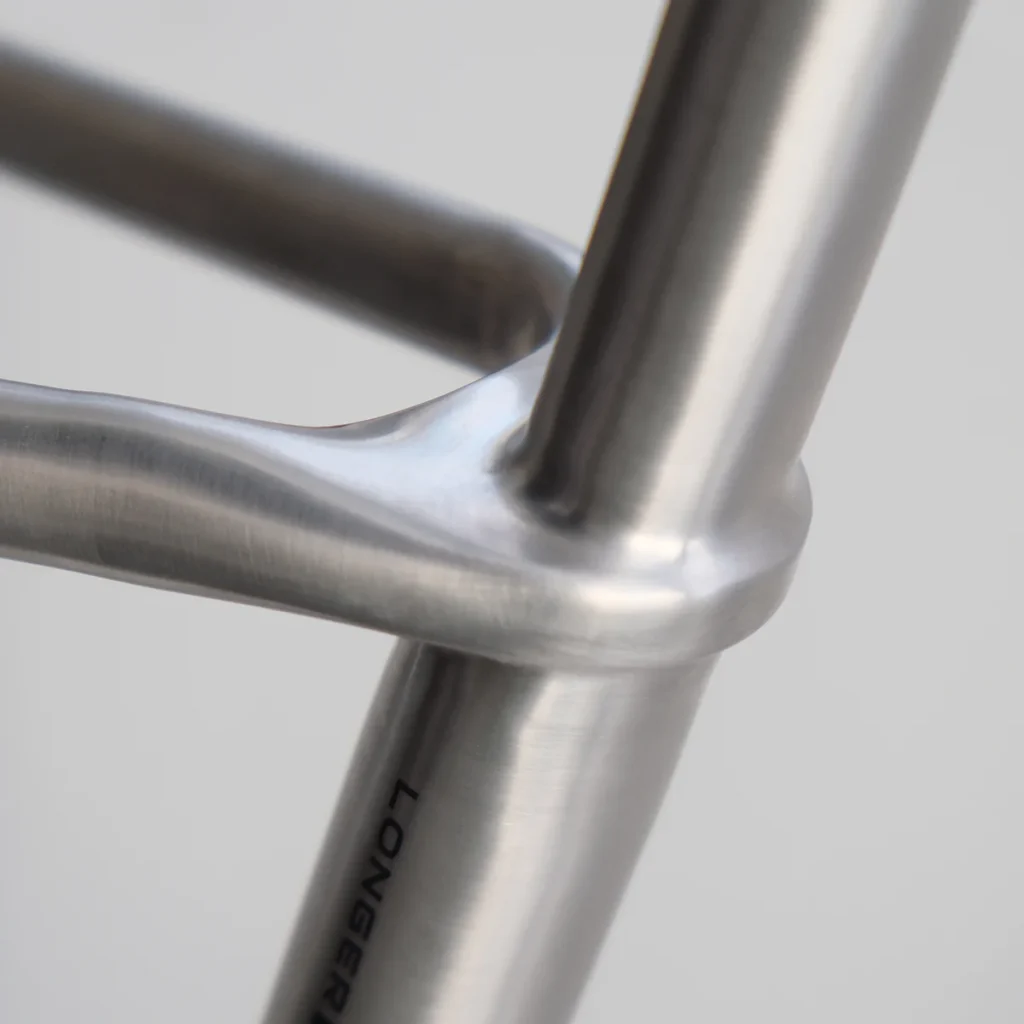

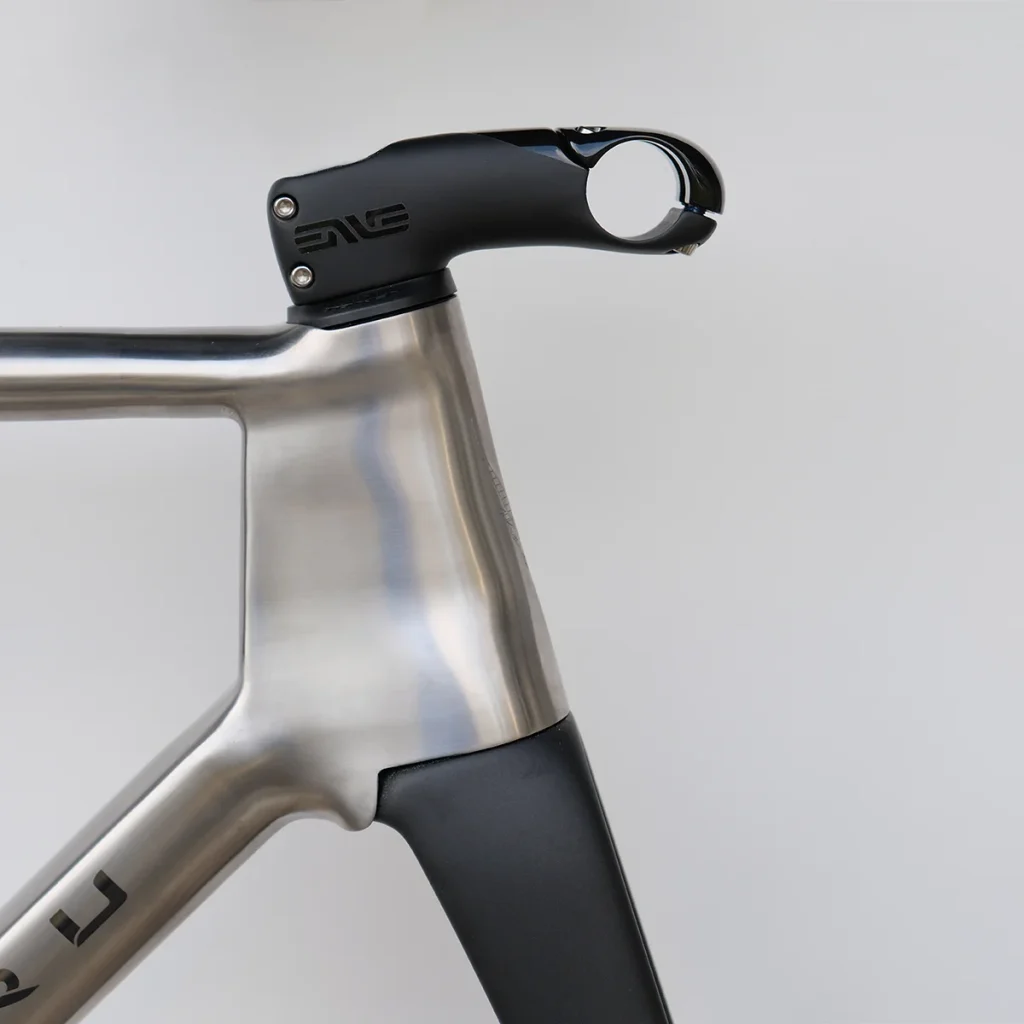

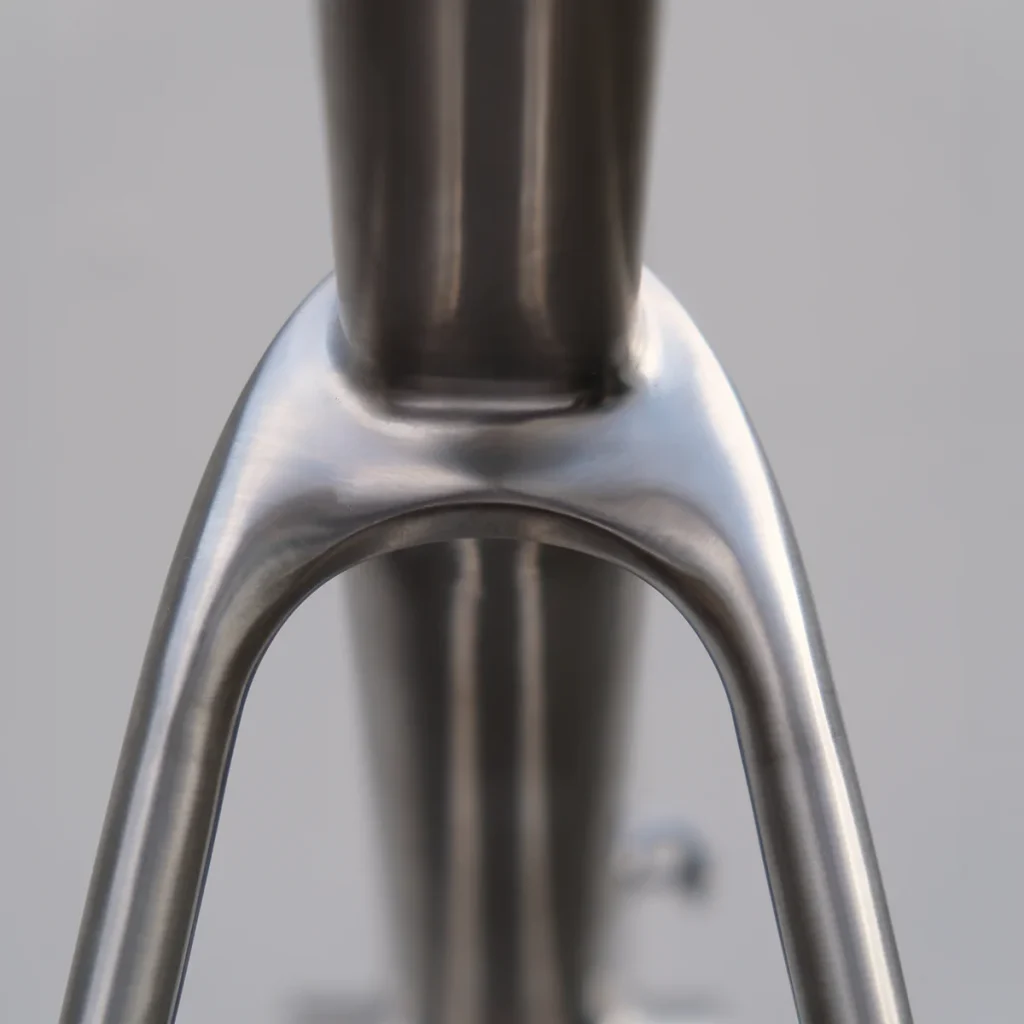

The AERIX combines the best of 3D printing and traditional techniques. As the first model to incorporate 3D-printed titanium elements, it enhances aerodynamics with an Aero ENVE fork that integrates into a streamlined head tube and a truncated “D”-shaped down tube. The ovalized seatstays and chainstays, along with the innovative double-profile seat tube, ensure power, comfort, and turbulence reduction, providing explosive power transfer and unmatched comfort to date.
Unique and Easy to Harness!
The AERIX’s distinctive silhouette catches every eye and piques curiosity… Will it be easy to handle? The answer is yes! This exceptional bike is designed to remain accessible to most passionate cyclists. Compatible with all electronic drivetrains on the market, whether single or double chainring, it accepts tires from 25 to 32 mm, offering great versatility. Additionally, the complete integration of cables ensures a sleek aesthetic without compromising the frame’s aerodynamics. What are you waiting for?
The AERIX, embodying aerodynamics and innovation, is designed for cyclists seeking extreme performance during intense rides or long distances. By integrating Chiru's DNA into every detail, this 100% race frame combines 3D printing and titanium, reflecting our commitment to providing bikes that propel competitors to new heights, without being as demanding as most aero frames.
The best of 3D printing and traditional techniques!
The AERIX combines the best of 3D printing and traditional techniques. As the first model to incorporate 3D-printed titanium elements, it enhances aerodynamics with an Aero ENVE fork that integrates into a streamlined head tube and a truncated "D"-shaped down tube. The ovalized seatstays and chainstays, along with the innovative double-profile seat tube, ensure power, comfort, and turbulence reduction, providing explosive power transfer and unmatched comfort to date.
Unique and Easy to Harness!
The AERIX's distinctive silhouette catches every eye and piques curiosity... Will it be easy to handle? The answer is yes! This exceptional bike is designed to remain accessible to most passionate cyclists. Compatible with all electronic drivetrains on the market, whether single or double chainring, it accepts tires from 25 to 32 mm, offering great versatility. Additionally, the complete integration of cables ensures a sleek aesthetic without compromising the frame's aerodynamics. What are you waiting for?
| Material | Titanium tube 3Al.2.5V, grade 9 + Titanium 6Al.4V 3D printing |
| Finish | Brushed, Logo laser engraved |
| Tire clearance | 700cx32c |
| Transmission compatibility | Shimano ULTEGRA Di2, DURACE Di2 52x36T, or single chainring 50T, SRAM Route AXS 50x37T, Campagnolo Super Record13 52/36T |
| Bottom bracket compatibility | T47 x 85.5 mm |
| Through axis | Rear: 142x12 mm |
| Mounting points | 2 can holders (2 x 750ml) |
| Head tube | Outer bush dia. 56mm; standard IS 52/52 mm, Upper bearing outer dia. 52mm x 45 deg. (insertion depth 8.7mm). Compatible with full integration cockpit hoods from RITCHEY, TOKEN, BLK TEC, DEDA, FSA. |
| Rear brake mount | Flat mount 160 mm |
| Routing | Internal for derailleurs + rear brake hose + telescopic seatpost |

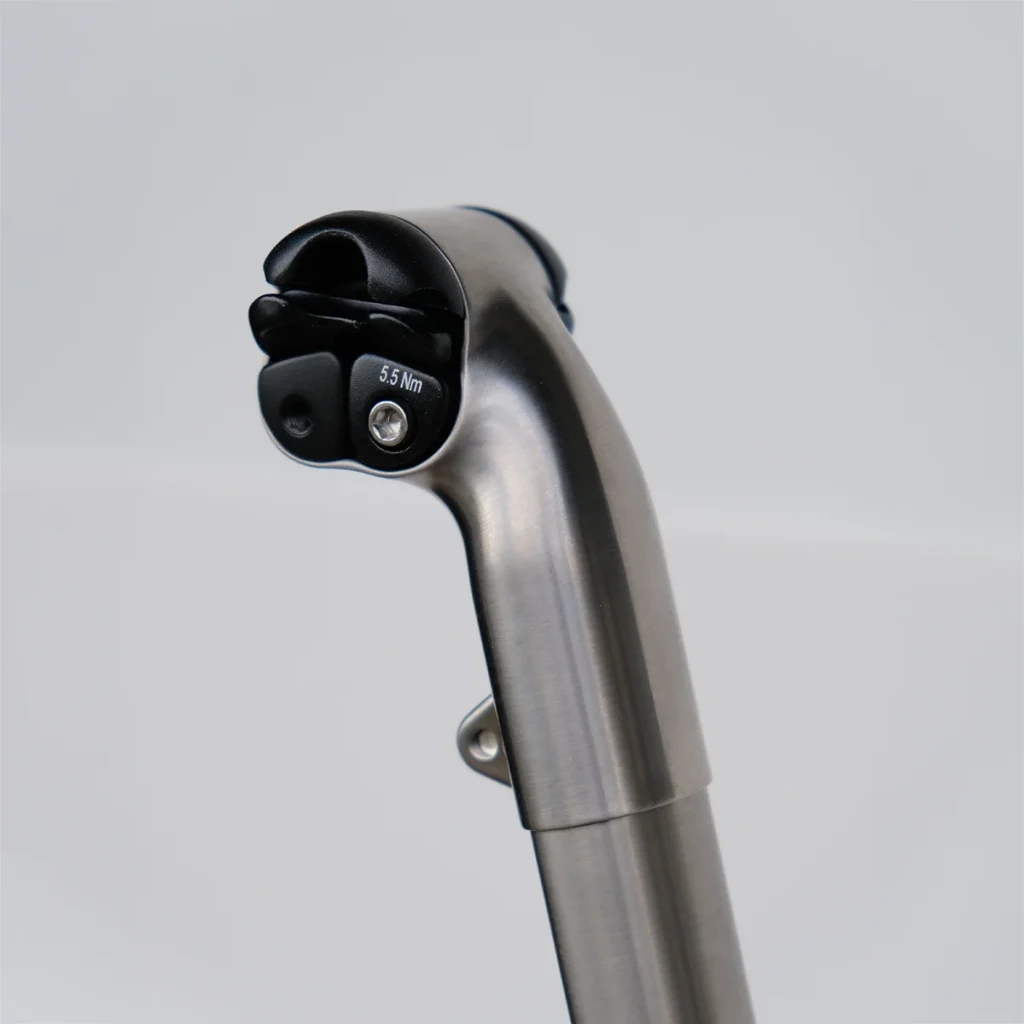

| Seat post | Mat ISP + CHIRU seatpost 3D titanium printing 3D" profile Integrated into frame, ENVE mechanism seat carriage |
| Accessories included |
|

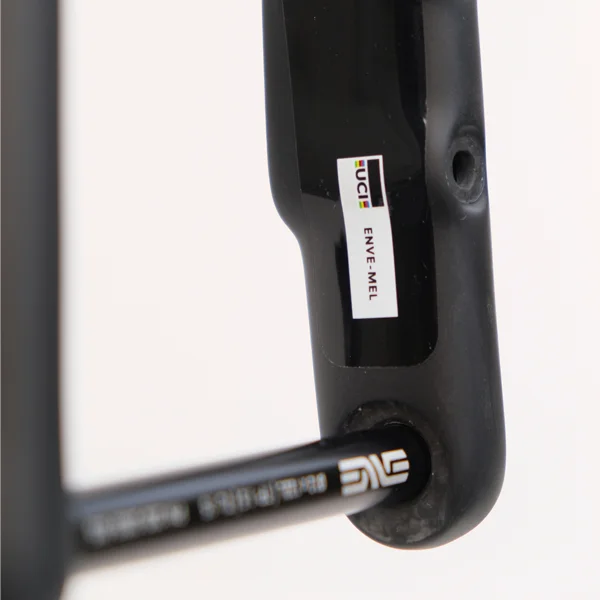

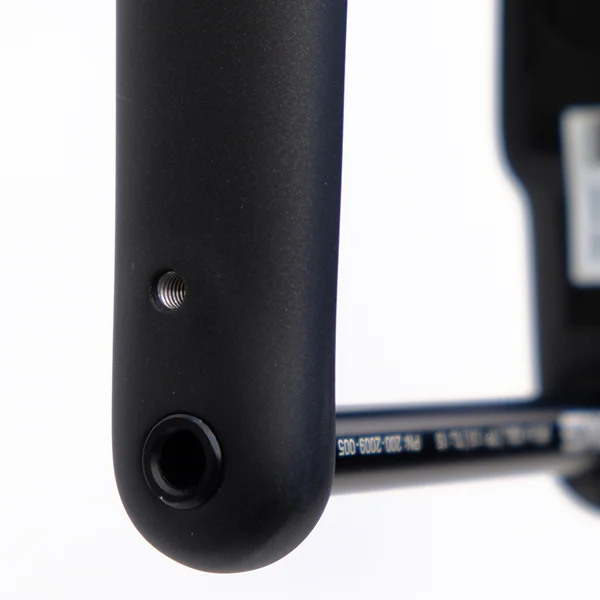

| Material | Carbon |
| Finish | Mat clear varnish |
| Tire clearance | 700c x 34c |
| Through axis | 100x12 mm x p1.5 |
| Pivot | tapered 1" 1/8-1.5", Dia. 39.8 x 36 deg. integral bearing, L: 350 mm. |
| Routing | Internal for front brake hose (outlet in pivot) |
| Brake mount | Flat mount 160 mm |
| Length and offset | 375 x 47 mm |
| Weight | 430 g |
| Accessories included |
|
| Type / Cage material | Internal bearing / Aluminum |
| Compatible model | All models with 85.5 mm BB shell width |
| Compatible crankset | Shimano 24 mm axle crankset |
| Bearing | ABEC-3 / Titanium nitride-coated bearing cage |
| Spacer | Aluminium, for BB shell width 85.5mm |
| Clamping crown | 16 notches / dia. 48.5 |
| Mounting tool | Park tool 27.3 |
| Color | Black |
| Material | Aluminum |
| Compatible model | All Chiru ranges after 2021 except Kunlun and Savage |
| Compatible derailleur | All types of derailleur: Sram, Shimano, Campagnolo, Rotor, Microshift |
| Axle compatibility | M12x1.0 |
| Color | Black |

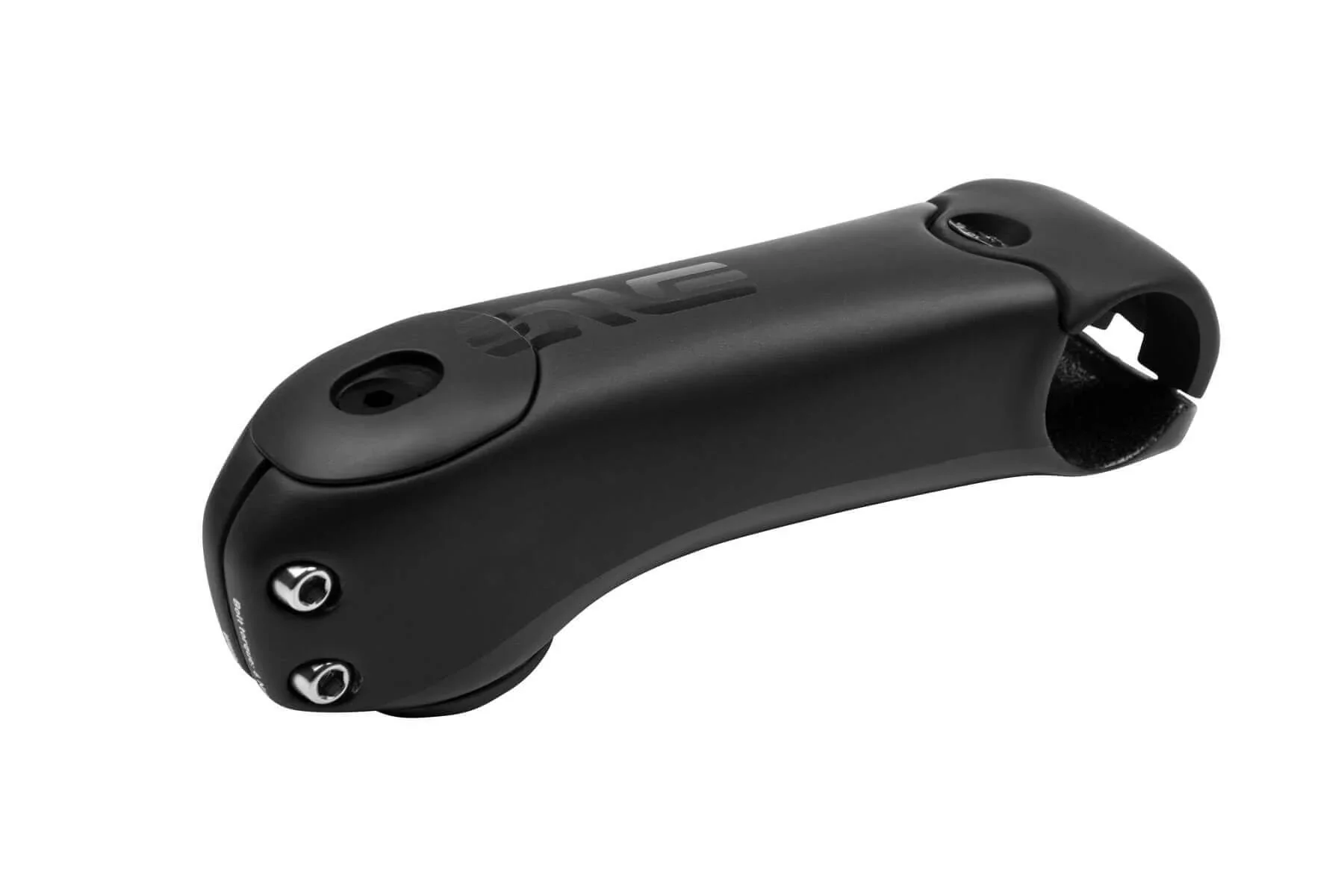

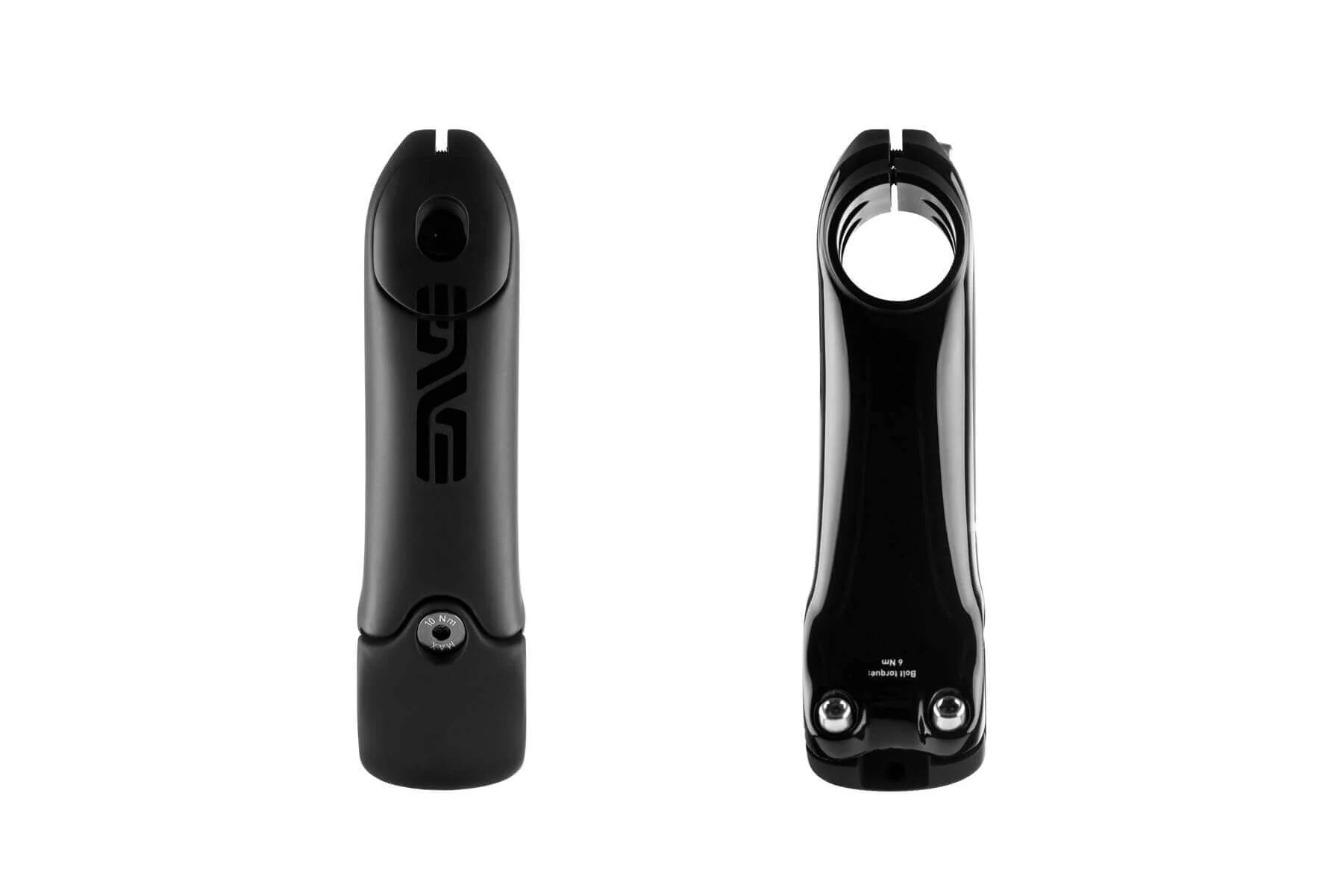

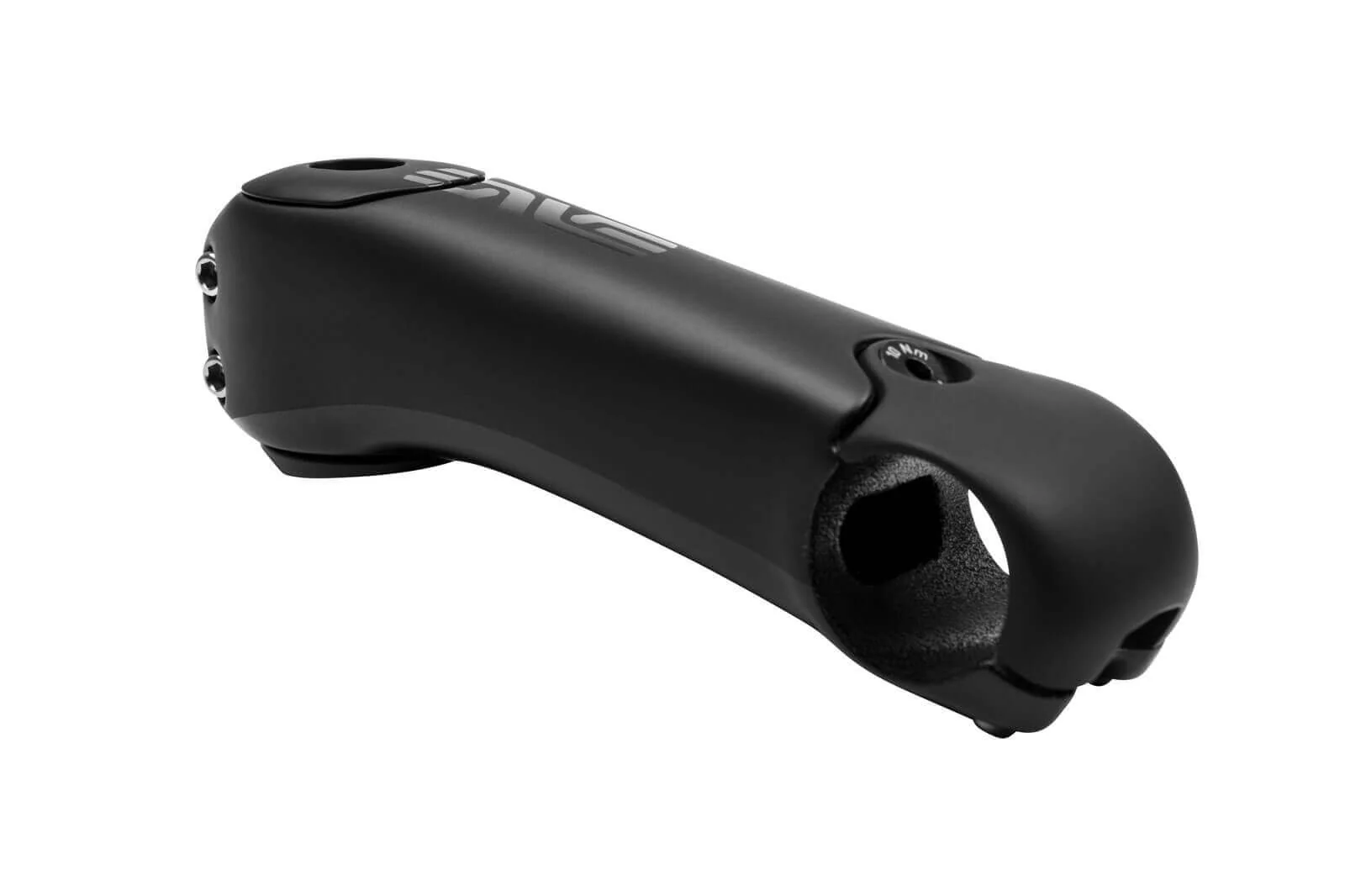

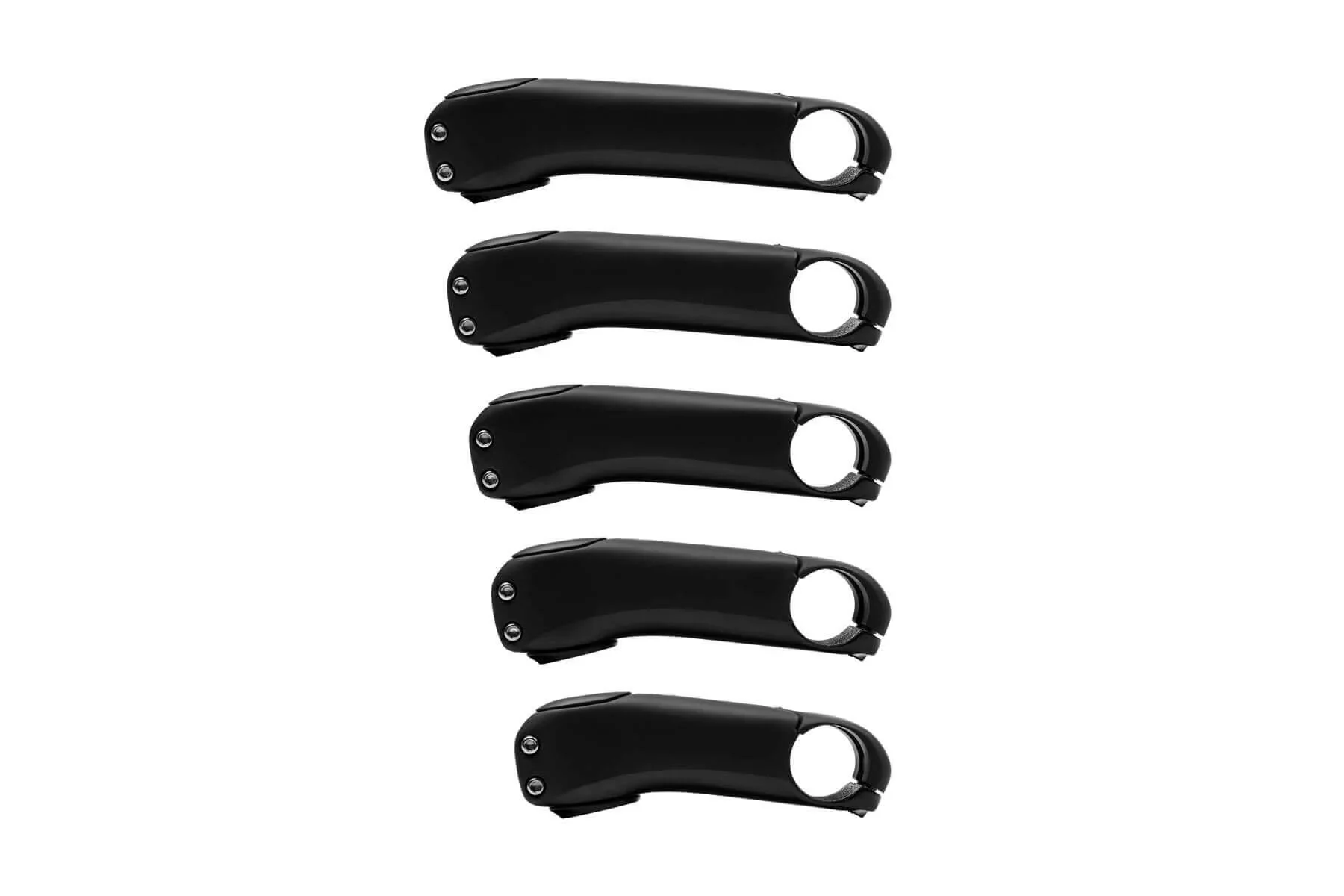

| Body / screws material | Carbon |
| Length | 90, 100, 110, 120, 130, 140mm |
| Angle | -12 Deg |
| Pivot clamping height | 48 mm |
| Handlebar clamping diameter | 31.8 mm |
| Width of handlebar clamping area | 50 mm |
| Finish | Mat |
| Weight | 165 - 190 g |
| Material | Titanium 3Al/2.5V, Lazer soda |
| Adjustment range position | 25 mm |
| Bottle capacity | 600 to 800 ml |
| Fasteners | 2 x M5x10 Ti, Torx25 socket |
| Handling | Easy entry and exit |
| Maintenance | Secure, deformation-adjustable can holder |
| Finish | Sandblasting |
| Weight | 34 g |
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| TT (mm) | 520 | 540 | 555 | 570 | 590 |
| S (mm) | 660 | 680 | 720 | 740 | 760 |
| RC (mm) | 407 | 408 | 410 | 410 | 412 |
| W (mm) | 982 | 991 | 994 | 1002 | 1020 |
| BB (mm) | 75 | 75 | 72 | 70 | 70 |
| HT (mm) | 110 | 130 | 145 | 165 | 190 |
| SA (deg.) | 75 | 74.2 | 73.6 | 73.4 | 73.2 |
| HA (deg.) | 71.3 | 71.7 | 72.8 | 73.2 | 73.6 |
| AC (mm) | 375 | 375 | 375 | 375 | 375 |
| O (mm) | 47 | 47 | 47 | 47 | 47 |
| ST (mm) | 516 | 537 | 552 | 570 | 596 |
| R (mm) | 382 | 388 | 393 | 400 | 410 |
| Rider (cm) | Inseam (cm) | Frame |
|---|---|---|
| 157-167 | - | XS |
| 165-173 | - | S |
| 173-179 | - | M |
| 179-186 | - | L |
| 186-194 | - | XL |
