29" x 2.0/2.4"
Full Frame & Top-tube bag mounts, rear rack + mudguard mounts and 5 sets of Bottle mounts
MTB crankset ( Boost ) 36T, Transmission: MTB 1x12s or Gravel 1x11s or 12s Mechanical, Di2 or AXS
All-terrain, rigid fork or 100 mm travel fork, raised chest position
Internal cable routing for rear light
Gravel or flat
Hard gravel, trail
The Chiru Kegeti titanium frame was designed to autonomously cover the 1800 km of the first edition of the Silk Road Mountain Race in 2018 (Kyrgyzstan). It owes its name to the gruelling and majestic Kegeti pass at almost 4,000 m altitude. Chiru Kegeti is designed to tackle difficult and varied terrain on its own, so you can arrive at your destination happy and with a head full of incredible memories!

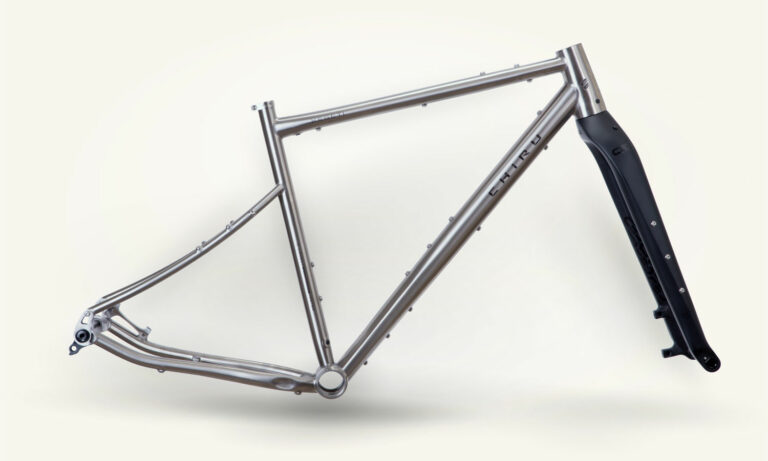

Chiru Kegeti, a titanium gravel frame with mountain bike capabilities
The Chiru Kegeti titanium gravel frame has been designed so that nothing holds you back: its proven ultra-endurance geometry combined with titanium offers comfortable, efficient handling whatever the terrain: cobbles, gravel, scree. In terms of engineering, we wanted you to be able to ride 100% rigid, or to add more comfort by installing a suspension fork with 80 or 100 mm travel.
The titanium frame of choice for tough, unpredictable adventure racing.

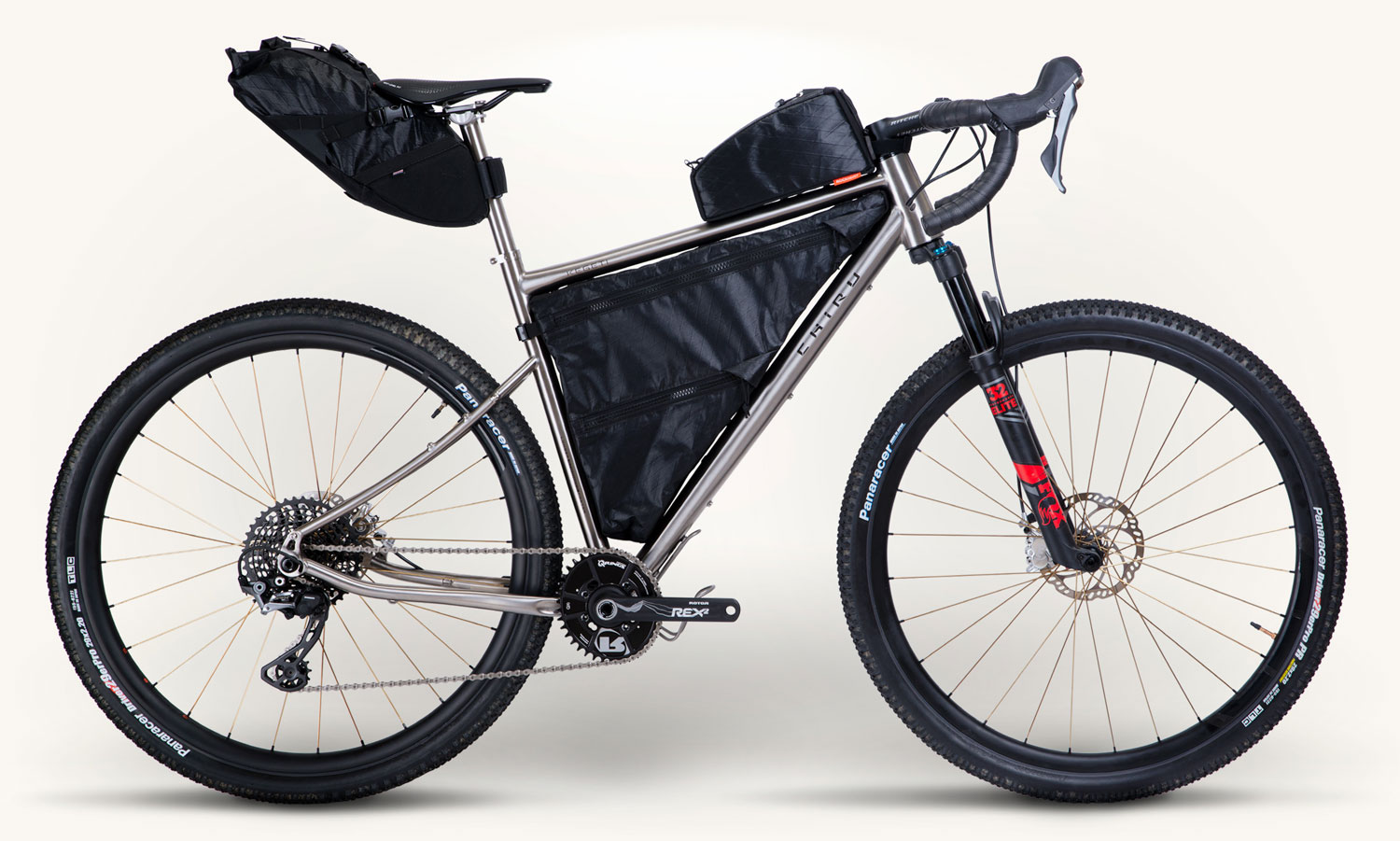

The Chiru Kegeti titanium hybrid gravel MTB frame can be fitted with a drop bar or flat handlebars. The Kegeti frame’s numerous integrated attachment points provide ample capacity for luggage and refueling. It features 5 bottle cages! Transmission, wheels and tires are mountain bike standards, which sets it apart from other gravel bikes.
The Chiru Kegeti titanium frame was designed to autonomously cover the 1800 km of the first edition of the Silk Road Mountain Race in 2018 (Kyrgyzstan). It owes its name to the gruelling and majestic Kegeti pass at almost 4,000 m altitude. Chiru Kegeti is designed to tackle difficult and varied terrain on its own, so you can arrive at your destination happy and with a head full of incredible memories!
Chiru Kegeti, a titanium gravel frame with mountain bike capabilities
The Chiru Kegeti titanium gravel frame has been designed so that nothing holds you back: its proven ultra-endurance geometry combined with titanium offers comfortable, efficient handling whatever the terrain: cobbles, gravel, scree. In terms of engineering, we wanted you to be able to ride 100% rigid, or to add more comfort by installing a suspension fork with 80 or 100 mm travel.
The titanium frame of choice for tough, unpredictable adventure racing.
The Chiru Kegeti titanium hybrid gravel MTB frame can be fitted with a drop bar or flat handlebars. The Kegeti frame's numerous integrated attachment points provide ample capacity for luggage and refueling. It features 5 bottle cages! Transmission, wheels and tires are mountain bike standards, which sets it apart from other gravel bikes.
| Material | Titanium 3Al.2.5V, grade 9 |
| Finish | Brushed, Logo laser engraved |
| Tire clearance | 29 x 2.4" |
| Transmission compatibility | Standard BOOST mountain bike, 36T Shimano XT (mechanical or Di2) SRAM GX, X01, XX1 (mechanical or AXS). |

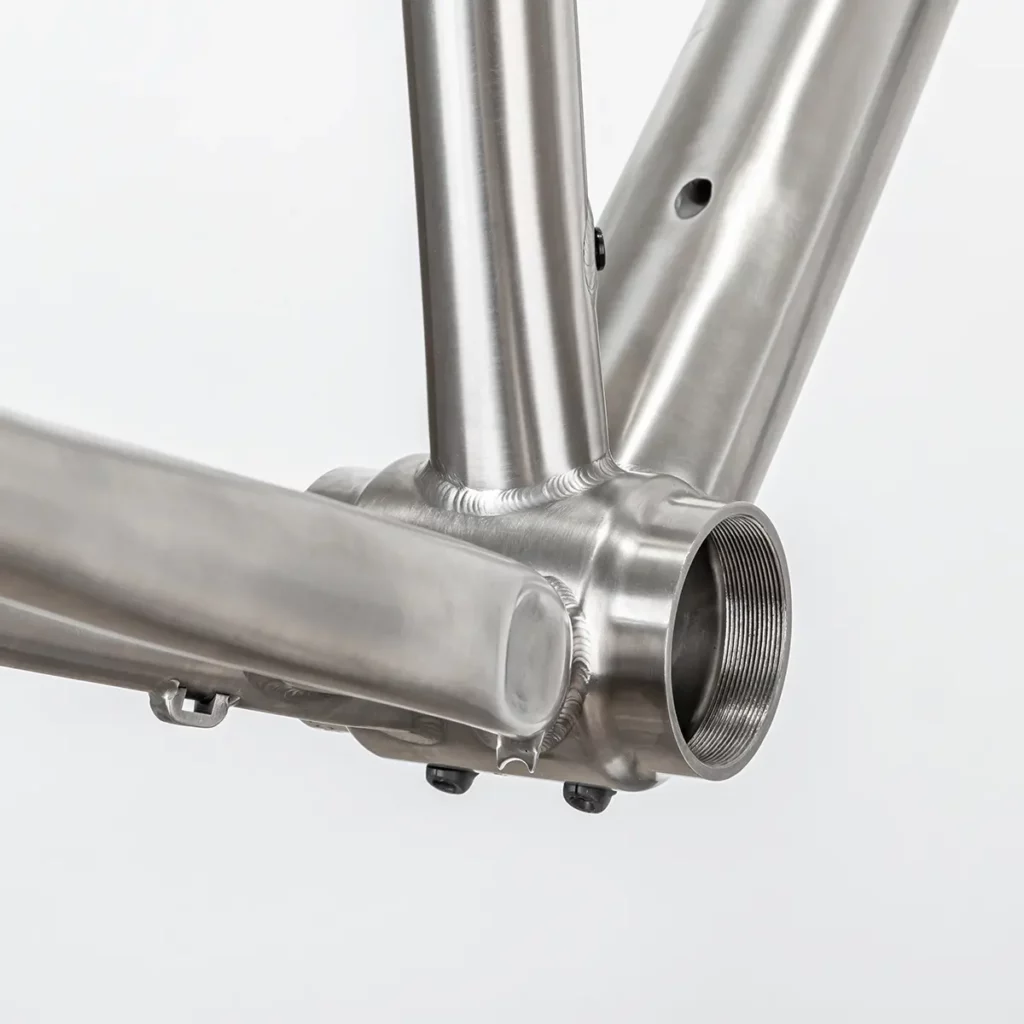

| Bottom bracket compatibility | T47 x 85.5 mm |
| Through axis | 148x12 mm |

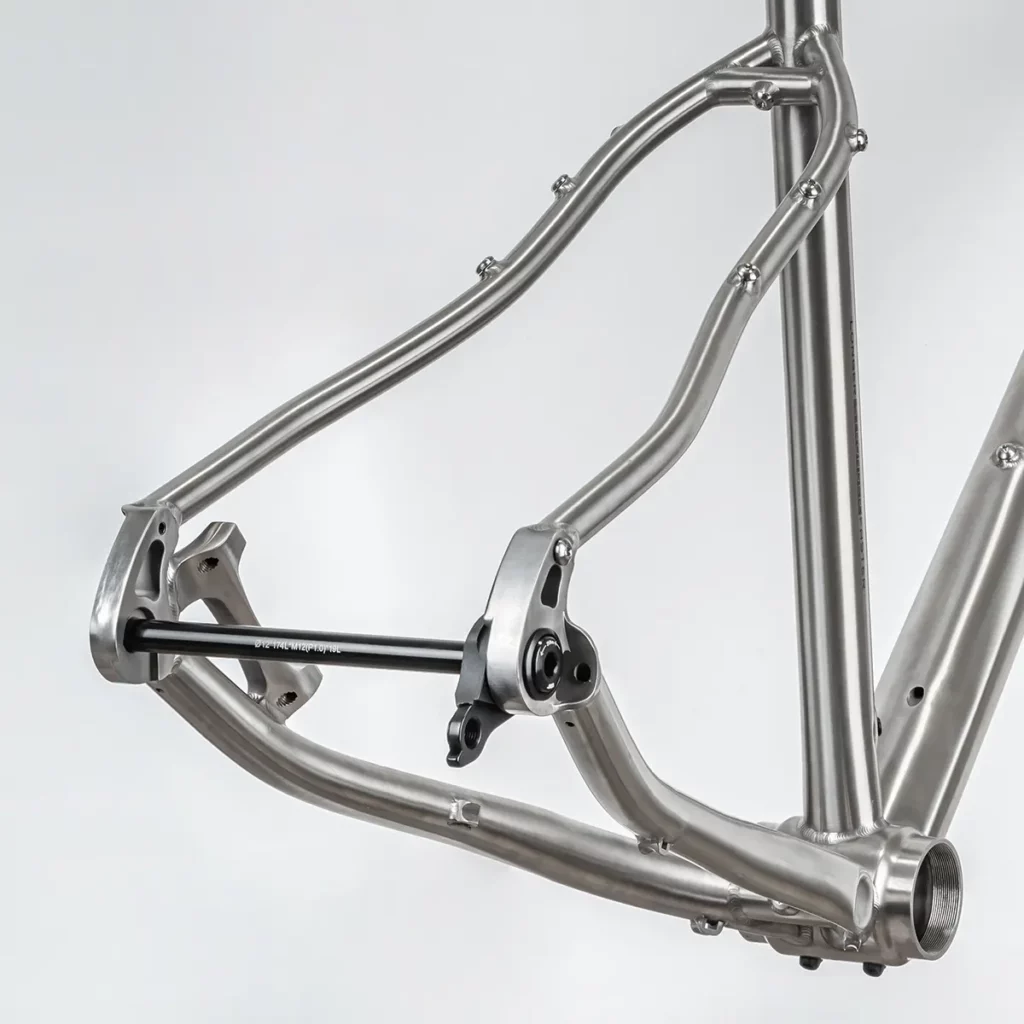

| Mounting points |
|

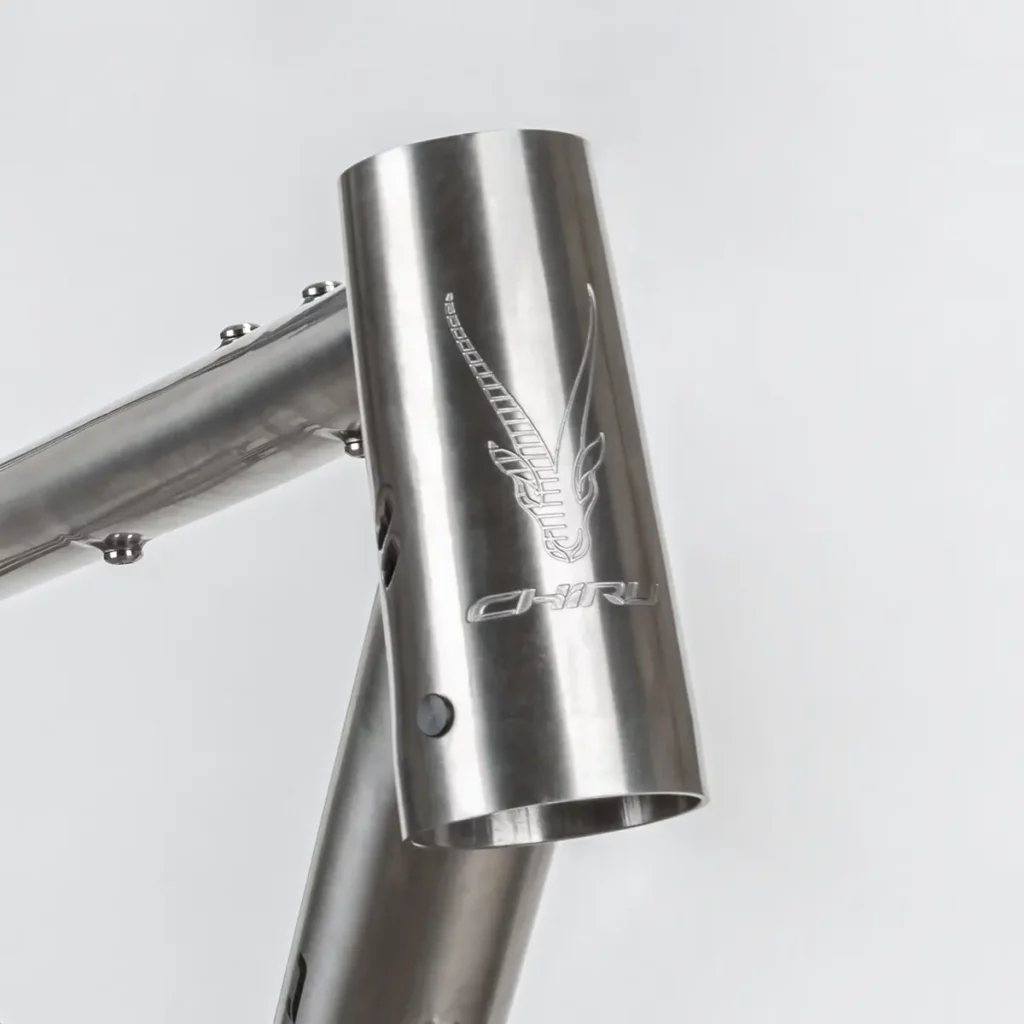

| Head tube | 56/44 mm conical |

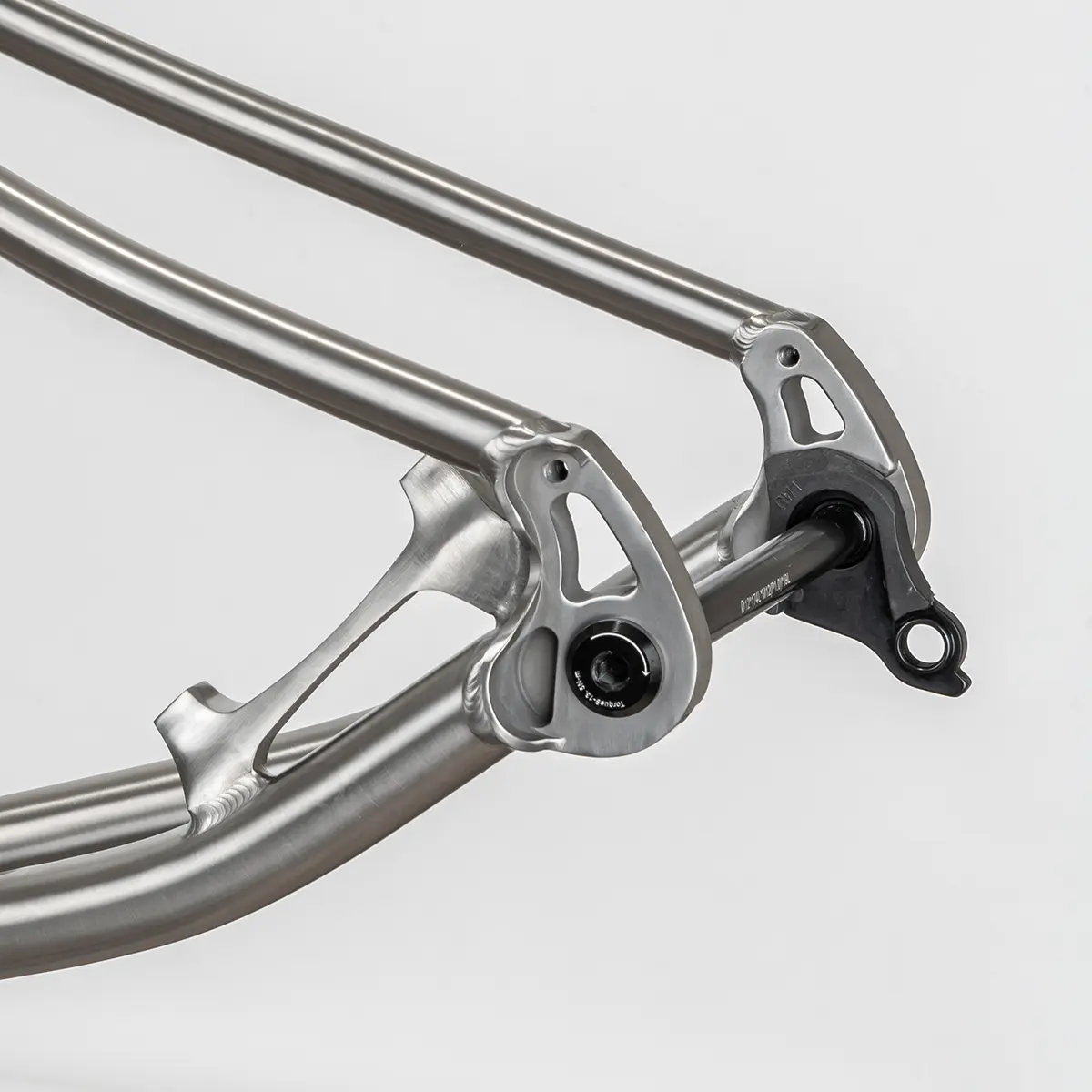

| Rear brake mount | Postmount 160 mm |
| Routing | Internal or external for derailleurs + rear brake housing Internal for seat-dropper Internal for rear lighting |
| Seat post | Diameter 27.2 mm |
| Seat tube clamp | Diameter 31.8 mm |
| Accessories included |
|
| Material | Carbon |
| Finish | Mat clear varnish |
| Tire clearance | 29 "x2.8" |
| Through axis | 110x15 mm x p1.5 |
| Mounting points |
|
| Pivot | tapered 1" 1/8-1.5", L: 300 mm |
| Routing | Internal for front brake housing Internal for dynamo cable |
| Brake mount | Post mount 160 mm |
| Length and offset | 485 x 51 mm |
| Weight | 690 g |
| Accessories included |
|
| Material | Titanium |
| Finish | Hand-brushed, laser-engraved logo |
| Tire clearance | 700cx2.35" (60 mm) & 650bx2.4" |
| Through axle | 110x15 mm x p1.5 |
| Mounting points |
|
| Pivot | tapered 1" 1/8-1.5", L: 290 mm, diam. int. 25 mm |
| Routing | Internal for front brake housing Internal for dynamo cable |
| Brake mount | Flat mount 140 or 160 mm |
| Length and offset | 475 x 50 mm |
| Weight | 785 g |
| Accessories included |
|
| Type / Cage material | Internal bearing / Aluminum |
| Compatible model | All models with 85.5 mm BB shell width |
| Compatible crankset | Shimano 24 mm axle crankset |
| Bearing | ABEC-3 / Titanium nitride-coated bearing cage |
| Spacer | Aluminium, for BB shell width 85.5mm |
| Clamping crown | 16 notches / dia. 48.5 |
| Mounting tool | Park tool 27.3 |
| Color | Black |
| Material | Aluminum |
| Compatible model | All Chiru ranges after 2021 except Kunlun and Savage |
| Compatible derailleur | All types of derailleur: Sram, Shimano, Campagnolo, Rotor, Microshift |
| Axle compatibility | M12x1.0 |
| Color | Black |
| Material | Unidirectional Carbon |
| Accessories | Aluminium + 316 stainless steel screws |
| Length | 300 mm |
| Offset | 0 |
| Diameter | 27.2 mm |
| Saddle rail compatibility | 7 mm round or 7x10 mm carbon rail |
| Weight | 195 g |
| Material | Titanium 3Al/2.5V |
| Accessory | Titanium cradle + titanium screws |
| Length | 280 mm |
| Offset | 13 mm |
| Diameter | 27.2 mm |
| Saddle rail compatibility | 7 mm round or 7x10 mm carbon rail |
| Weight | 180 g |
| User weight limit | 100 kg |
| Material | Titanium 3Al/2.5V |
| Accessories | Titanium cradle + titanium screws |
| Length | 330 mm |
| Offset | 13 mm |
| Diameter | 27.2 mm |
| Saddle rail compatibility | 7 mm round or 7x10 mm carbon rail |
| Weight | 210 g |
| User weight limit | 100 kg |
| Material | Titanium 3Al/2.5V |
| Accessory | Titanium cradle + titanium screws |
| Length | 380 mm |
| Offset | 13 mm |
| Diameter | 27.2 mm |
| Saddle rail compatibility | 7 mm round or 7x10 mm carbon rail |
| Weight | 230 g |
| User weight limit | 100 kg |
| Body / screws material | Titanium 3Al/2.5V and 6Al/4V |
| Length | 50, 70, 80, 90, 100, 110mm |
| Angle | +/-5 Deg |
| Pivot clamping height | 48 mm |
| Handlebar clamping diameter | 31.8 mm |
| Width of handlebar clamping area | 50 mm |
| Finish | Hand-brushed, laser-engraved logo |
| Weight | 135 g |
| Material | Titanium 3Al/2.5V |
| Max. width | 760 mm |
| Width Min | 680 mm |
| Drop/rise | 0 mm |
| Clamping diameter | 31.8 mm |
| Max. width clamping | 95 mm on supplied spacer |
| Back Sweep | 16 deg. |
| Up Sweep | 15 mm |
| Weight | 255 g |
| Material | Titanium 3Al/2.5V |
| Max. width | 760 mm |
| Width Min | 680 mm |
| Drop/rise | 0 mm |
| Clamping diameter | 31.8 mm |
| Max. width clamping | 95 mm on supplied spacer |
| Back Sweep | 16 deg. |
| Up Sweep | 15 mm |
| Weight | 365 g ( hanger 320g + spacer 45 g ) |
| Size | S | M | L | XL |
|---|---|---|---|---|
| TT (mm) | 565 | 587 | 600 | 615 |
| S (mm) | 465 | 520 | 555 | 570 |
| RC (mm) | 445 | 445 | 447 | 449 |
| W (mm) | 1066 | 1110 | 1085 | 1106 |
| BB (mm) | 77 | 75 | 73 | 70 |
| HT (mm) | 120 | 130 | 155 | 175 |
| SA (deg.) | 74.25 | 74 | 74 | 74 |
| HA (deg.) | 69.5 | 69 | 70 | 70 |
| AC (mm) | 485 | 485 | 485 | 485 |
| O (mm) | 50 | 50 | 50 | 50 |
| ST (mm) | 623 | 633 | 654 | 670 |
| R (mm) | 385 | 406 | 412 | 423 |
| Rider (cm) | Inseam (cm) | Frame |
|---|---|---|
| 163-172 | - | S |
| 170-180 | - | M |
| 178-188 | - | L |
| 185-200 | - | XL |
CEC #475T RIGID TITANIUM
Shimano XTR
SRAM XX1 1x12S
AMARUQ Ultimate SL 29
MAXXIS IKON F2.35, R2.20
Titanium CEC hoop #760HT
Aluminium 100 MM
Prologo Dimension NDR
CEC titanium #330T dia. 27.2 x 300mm, 13mm recoil
Titanium frames and high-end components for demanding adventurous cyclists.
