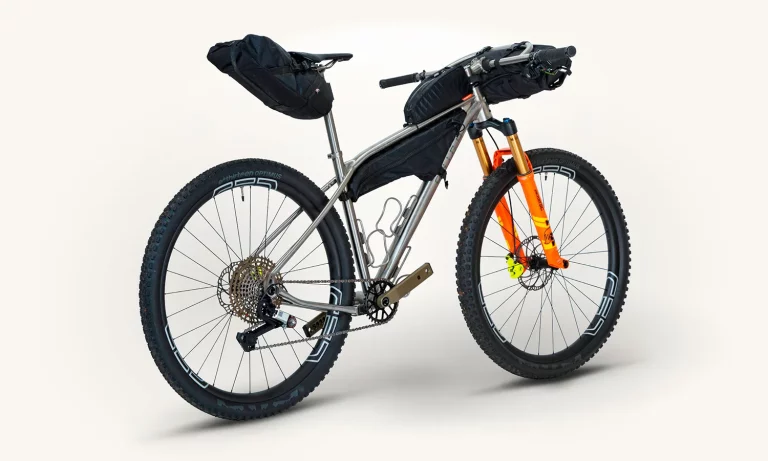

Chiru Highlander VTT - Photo du vélo équipé Bikepacking
Chiru Highlander VTT - Photo du vélo équipé Bikepacking
Chiru Highlander VTT - Photo du vélo équipé Bikepacking
Chiru Highlander VTT - Photo du vélo complet
Chiru Highlander VTT - Photo du cadre Titane seul
Chiru Highlander VTT - Photo du vélo équipé Bikepacking
Chiru Highlander VTT - Photo du vélo équipé Bikepacking
Chiru Highlander VTT - Photo du vélo équipé Bikepacking

Highlander
Titanium MTB frame

SKU N/A Categories , Tag
From 2725.00

lifetime warranty

Read more
Climbing
Downhill
Gnarly
Bikepacking
Versatility

Toward summits and beyond!

Tire clearance

29 x 2.6" or 27.5 x 2.8"

Bikepacking ready!

Full Frame bag mounts, rear rack + mudguard mounts and 3 sets of Bottle mounts

Transmission

MTB type, 1x12s, mechanical, Di2 or AXS, 34T single chainring, Boost standard.

Geometry

All-terrain mountain, 120 mm fork

Lighting

Internal cable routing for rear light

Handle bar

Flat

Surface

Trail, alpine trail

Configure your Highlander

Highlander

Chiru Highlander, the titanium MTB frame that takes you to new heights

The Chiru Highlander MTB titanium frame was developed for the Highland Trail 550 race in Scotland. This 550-mile (885 km) mountain loop is very steep, with 16,000 m of ascent and descent. In other words, the course is highly technical! What was needed was a mountain bike frame geared to technical and mountainous terrain. A machine to measure up to the grandeur of the Scottish Highlands

The Chiru of Down Country cyclists

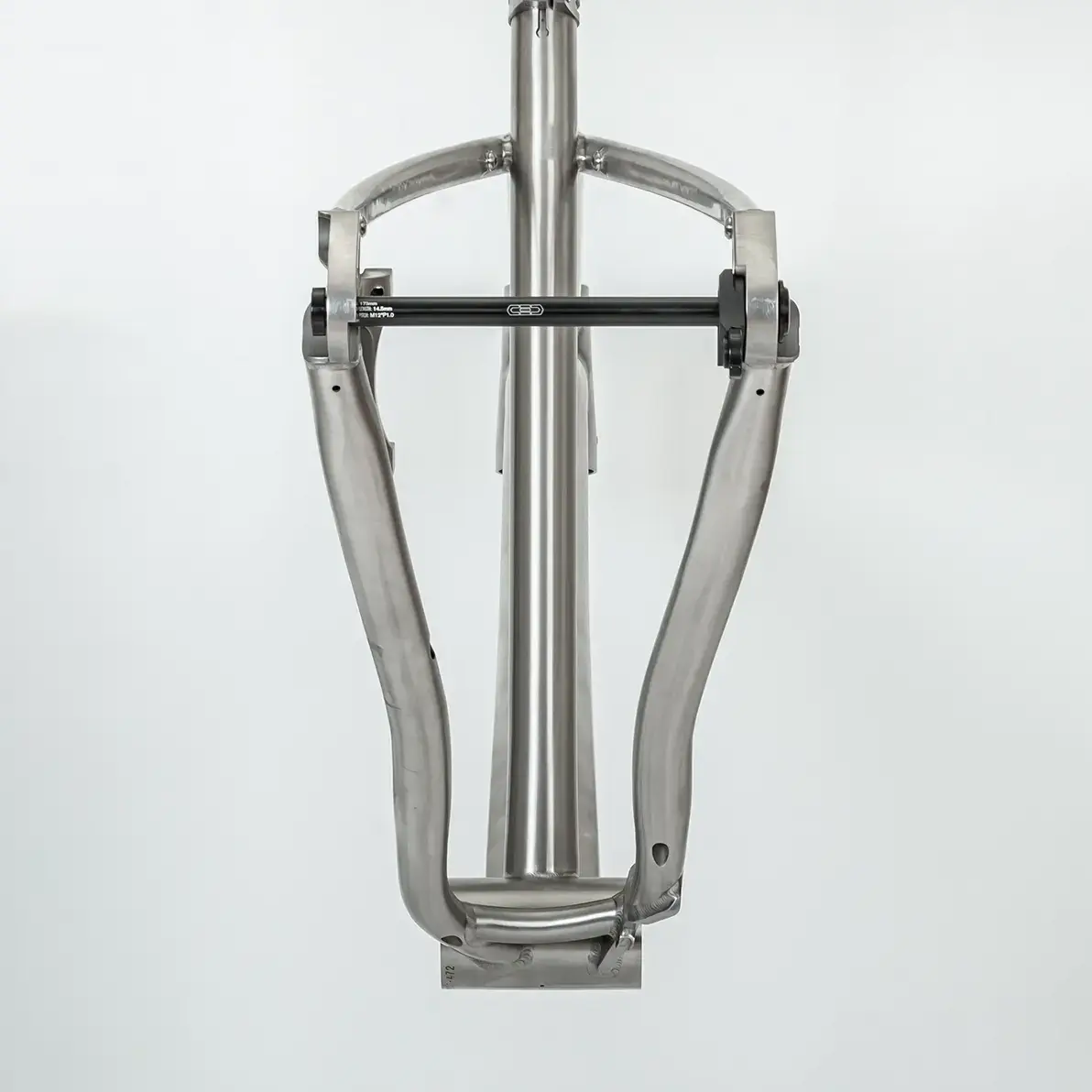

With its 120 mm fork and flat handlebars, Chiru Highlander’s geometry is designed to tackle steep slopes with optimum efficiency when the going gets tough! The frame’s vertical comfort is enhanced by the ovalized rear chainstays and hydroformed downtube. This Chiru design bias is synonymous with power transmission performance. Chiru Highlander therefore offers both good lateral rigidity and very good vertical comfort.

Chiru Highlander the Chiru of mountain sensations

The SRAM UDH rear dropout, used on all Chiru models, is also used here. Thanks to its width, the TOKEN T47R24 x 92 bottom bracket offers good rigidity and optimized bearing protection. Note: internal passage for derailleur and brake hoses in chainstays and downtube; internal passage for telescopic seatpost; internal passage for rear light. Its mountain-friendly geometry makes it an excellent choice for outings lasting a few days.

The Chiru Highlander MTB titanium frame was developed for the Highland Trail 550 race in Scotland. This 550-mile (885 km) mountain loop is very steep, with 16,000 m of ascent and descent. In other words, the course is highly technical! What was needed was a mountain bike frame geared to technical and mountainous terrain. A machine to measure up to the grandeur of the Scottish Highlands

The Chiru of Down Country cyclists

With its 120 mm fork and flat handlebars, Chiru Highlander's geometry is designed to tackle steep slopes with optimum efficiency when the going gets tough! The frame's vertical comfort is enhanced by the ovalized rear chainstays and hydroformed downtube. This Chiru design bias is synonymous with power transmission performance. Chiru Highlander therefore offers both good lateral rigidity and very good vertical comfort.

Chiru Highlander the Chiru of mountain sensations

The SRAM UDH rear dropout, used on all Chiru models, is also used here. Thanks to its width, the TOKEN T47R24 x 92 bottom bracket offers good rigidity and optimized bearing protection. Note: internal passage for derailleur and brake hoses in chainstays and downtube; internal passage for telescopic seatpost; internal passage for rear light. Its mountain-friendly geometry makes it an excellent choice for outings lasting a few days.

Read less Read more

His playground

Chiru innovations

Specifications

Frame
MaterialsTitanium Grade 9 3Al/2.5V, proprietary tubing with differentiated cross-section and thickness.
FinishBrushed, Logo laser engraved
Tire clearance29 x 2.6" or 27.5 x 2.8", or
Transmission compatibilityMechanical or Electronic
Standard Boost (52 mm chain line)
Single ring 34 teeth max.
Bottom bracket compatibilityT47 x 92 mm
Through axis148x12 mm
Mounting points
  • Luggage rack
  • Mudguard
  • Horizontal tube bag
  • Frame bag
  • 3 bottle cage holders (3 x 750ml)
head-tube56/44 mm conical
Rear brake mountPostmount 160 mm
RoutingInternal for derailleur + brake housing
Internal for seat-dropper
Internal for rear lighting
Seat postDiameter 27.2 mm
Seat tube clampDiameter 31.8 mm
Weight (M)1.75 Kg
Accessories included
  • Semi-integrated headset ZS56/44
  • CEC seatpost clamp #S32 Titanium, Diam. 31.8 mm
  • CEC rear axle 148x12 mm
  • Fork pivot expander + CEC cover
  • Titanium screws M5x10 (TORX25)
  • Rubber covers for cable entry
  • SRAM UDH derailleur hanger
Options

TOKEN bottom bracket T47R24 x 92

Type / Cage materialInternal bearing / Aluminum
Compatible modelAll models with 92 mm case width
Compatible cranksetShimano 24 mm axle crankset
BearingABEC-3 / Titanium nitride-coated bearing cage
SpacerAluminium, for case width 92 mm
Clamping crown16 notches / dia. 48.5
Mounting toolPark tool 27.3
ColorBlack

SRAM UDH derailleur hanger

MaterialAluminum
Compatible modelAll Chiru ranges after 2021 except Kunlun and Savage
Compatible derailleurAll types of derailleur: Sram, Shimano, Campagnolo, Rotor, Microshift
Axle compatibilityM12x1.0
ColorBlack

CEC seat post #380

MaterialUnidirectional Carbon
AccessoryAluminium + 316 stainless steel screws
Length380 mm
Offset0
Diameter 27.2 mm
Saddle rail compatibility7 mm round or 7x10 mm carbon rail
Weight195 g

CEC seat post #380-13Ti

MaterialTitanium 3Al/2.5V
AccessoryTitanium cradle + titanium screws
Length380 mm
Offset13 mm
Diameter 27.2 mm
Saddle rail compatibility7 mm round or 7x10 mm carbon rail
Weight230 g
User weight limit100 kg

CEC stem #T5X

Body / screws materialTitanium 3Al/2.5V and 6Al/4V
Length50, 70, 80, 90, 100, 110mm
Angle+/-5 Deg
Pivot clamping height48 mm
Handlebar clamping diameter31.8 mm
Width of handlebar clamping area50 mm
Finish Hand-brushed, laser-engraved logo
Weight135 g
chiru-potence-cec-t5x-1
chiru-potence-cec-t5x-2-2
chiru-potence-cec-t5x-3
chiru-potence-cec-t5x-4

CEC HANGER #750

MaterialCarbon
Max. width750 mm
Width Min680 mm
Drop/rise0 mm
Clamping diameter31.8 mm
Max. width clamping52 mm
Back Sweep10 deg.
Up Sweep3 deg.
Weight180 g
Screen_Shot_2018-03-06_at_12.10.41_AM_600x600
Screen_Shot_2018-03-06_at_12.10.20_AM_600x600

CEC HANGER Straight #760T

MaterialTitanium 3Al/2.5V
Max. width760 mm
Width Min680 mm
Drop/rise0 mm
Clamping diameter31.8 mm
Max. width clamping95 mm on supplied spacer
Back Sweep16 deg.
Up Sweep15 mm
Weight255 g
cintre-CEC-760T-1
cintre-CEC-760T-2
cintre-CEC-760T-3

CEC HANGER Straight + Hoop #760HT

MaterialTitanium 3Al/2.5V
Max. width760 mm
Width Min680 mm
Drop/rise0 mm
Clamping diameter31.8 mm
Max. width clamping95 mm on supplied spacer
Back Sweep16 deg.
Up Sweep15 mm
Weight365 g ( hanger 320g + spacer 45 g )
Geometry
SizeSML
TT (mm)565600625
S (mm)425455480
RC (mm)435435435
W (mm)110811461172
BB (mm)656060
HT (mm)100110120
SA (deg.)74.574.574.5
HA (deg.)686868
AC (mm)530530530
O (mm)515151
ST (mm)632636645
R (mm)395429451
Size
Rider (cm)Inseam (cm) Frame
164-172-S
173-182-M
183-192-L

The expert's eye

build your dream bike.

Pierre-A. Le Magnan's build-up
HT550 Scotland

FORK

FOX 34 FACTORY 120MM

BRAKES

MAGURA MT8

TRANSMISSION

SHIMANO XT 1X11S

WHEELS

CEC W24

TIRES

MAXXIS REKON 2.6

HANDLE BAR

#750T Hoop flat bar

STEM

#T5X 90MM

SADDLE

GEBIOMIZED AREA 145MM

SEATPOST

FOX Transfer 70 mm
