27.5"|SIX50|FRAME



XTERRA RACE MACHINE

POWER TRANSFER & COMFORT
WORLDCLASS RACETRACKS



  • Compatible with 100 or 120 mm front fork.
  • Tapered Head tube : 1 1/8'-1 1/2”
  • Seat post Dia. : 31.6 mm
  • Front Derailleur : High Direct Mount, top pull
  • Rear Drop-out : 142x12mm thru axle
  • Rear Brake : Direct Mount 160 mm.
  • PF 41x90 Body Built BB
  • Size : S, M, L

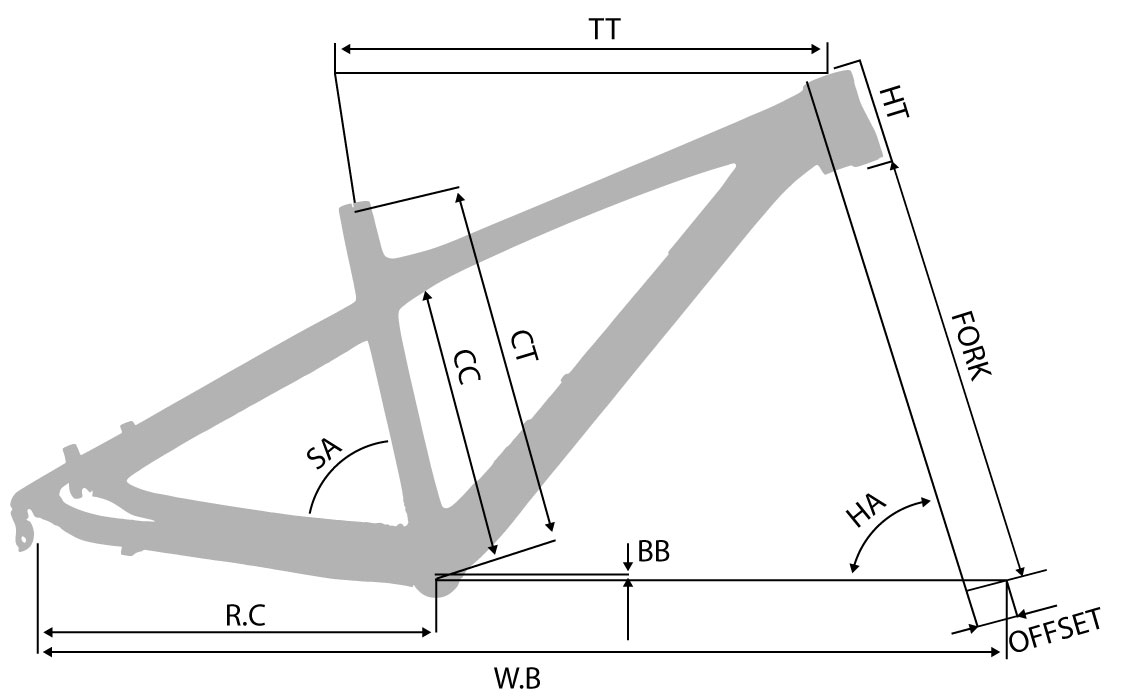

SIX50 S M L unit
Effective top tube 560 590 615 mm
Seat Tube Length 432 457 490 mm
Chain Stay Length 427 427 427 mm
Front to Center 490 490 490 mm
Wheel Base 1030 1063 1235 mm
BB Drop 48 48 48 mm
Head Tube Length 100 110 120 mm
Seat Tube Angle 73 73 73 deg
Head Tube Angle 71 71 71 deg
RIDER SIZE 158-173 171-184 180-195 (cm)
